Lecture 17 Asynchronous Programming

Motivation

History

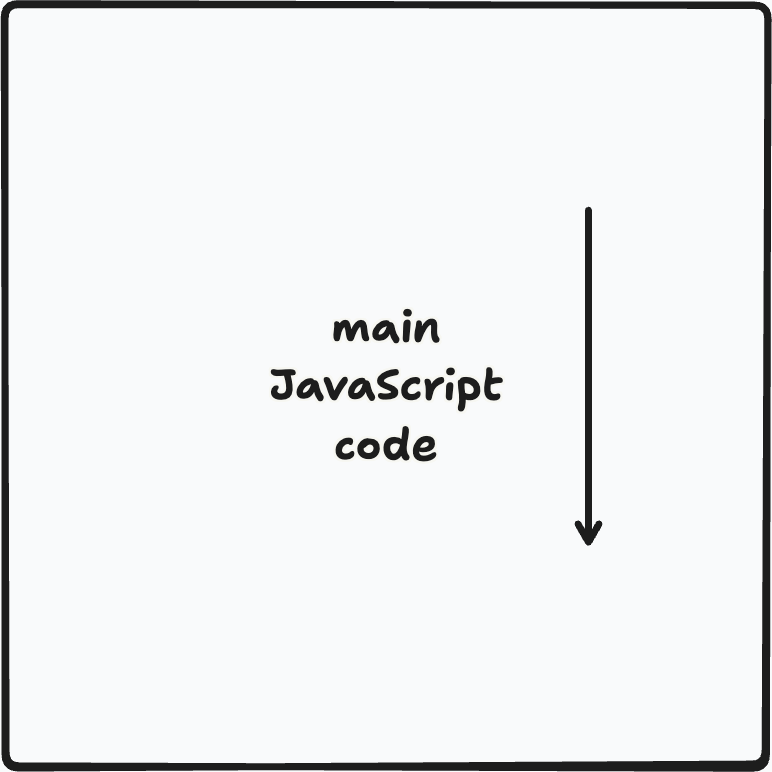

Sequential Programming

We write code that does one thing at a time
If we get stuck (e.g. awaiting user input) everything stops

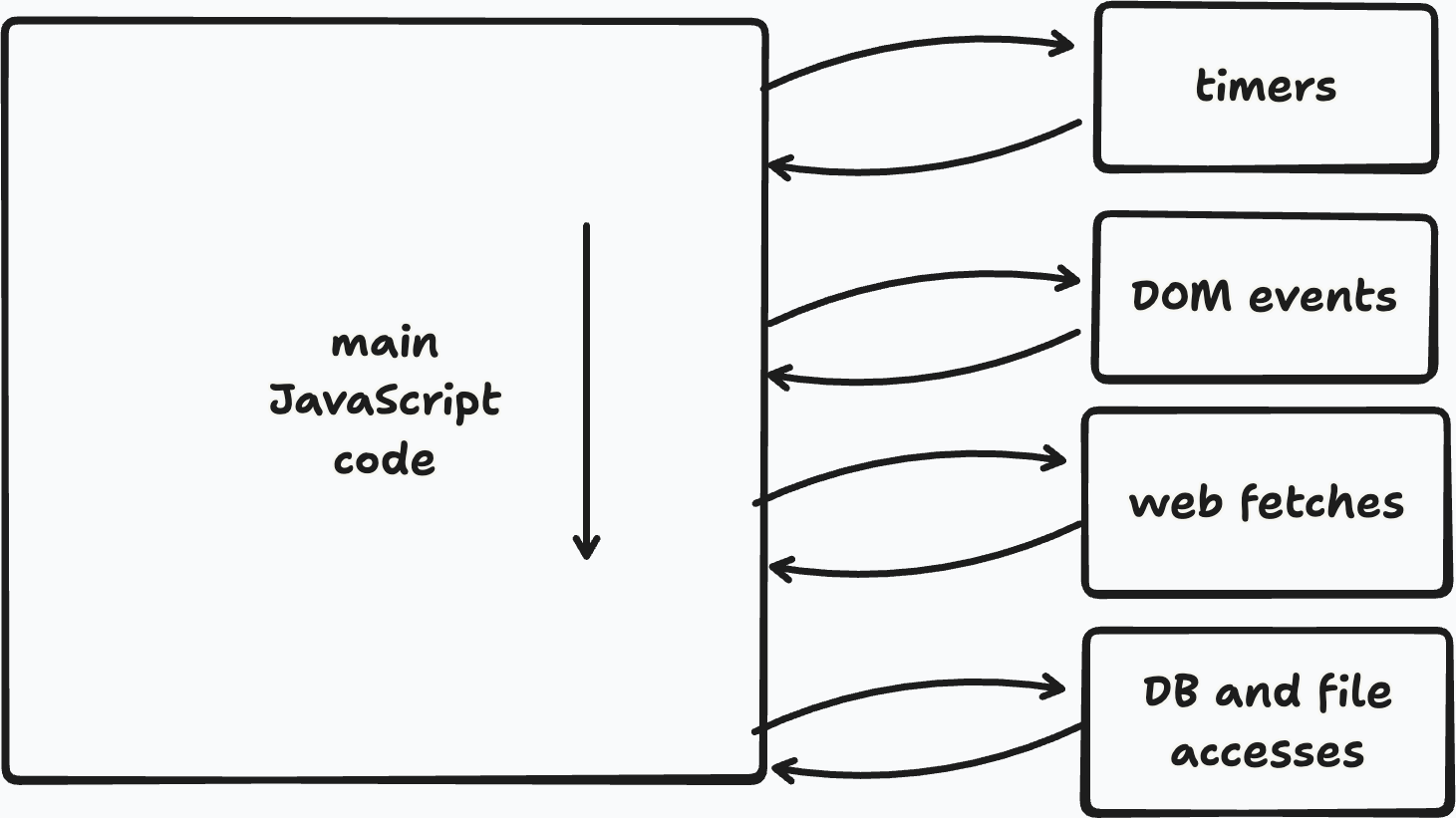

Asynchronous Programming

In modern systems, lots going on at once
- Computation
- Animation
- User input
- Network communication
Often need to start something now and finish it later
How do we express that in code?
- Start this, and while waiting start that, and while waiting...

Two-edged Sword

Benefits

Exploit available parallelism
Do 10 things are once, finish 10 times faster
Continue to be responsive while waiting for something slow

Costs

Want result immediately, have to wait
- stay responsive to user while waiting
- have to remember what I was waiting for
Asynchrony is confusing
- code is complex, hard to read
- source of many bugs
- hard to debug
- e.g. tracing execution is naturally sequential

Example: Script Loading

Standard (non-module) script loading is synchronous
- page load pauses while script is fetched, executed
- one thing at a time
Script at beginning loads/runs before page complete
- delays parsing of rest of page
- cannot count on page being present
- must take care manipulating page
Script at end loads/runs after page complete
- Delays download of script
- Delays execution of script
- May reduce responsiveness


			  <script src="early.js">
			  <div>
			  content here...
			  </div>
			  <script src="late.js">

Example: Script Loading


			<script src="s1.js"></script>
			<!--page fetch pauses here while s1.js is fetched and executed-->
			<script defer src="s3.js"></script>
			<!--page fetch continues while s3.js is fetched-->
			<!--s3.js executes after page is loaded-->
			<!--fetch in parallel, execute in sequence-->
			<script type="module" src="s3.js"></script>
			<!--implicitly deferred-->
			<script async src="s2.js"></script>
			<!--page fetch/exec continues while s2.js is fetched and executed-->
			<!--fetch/execute both in parallel—more parallel than defer-->

Polling

Example

We want to

load an image from web into an image element
then activate some UI functionality using init().

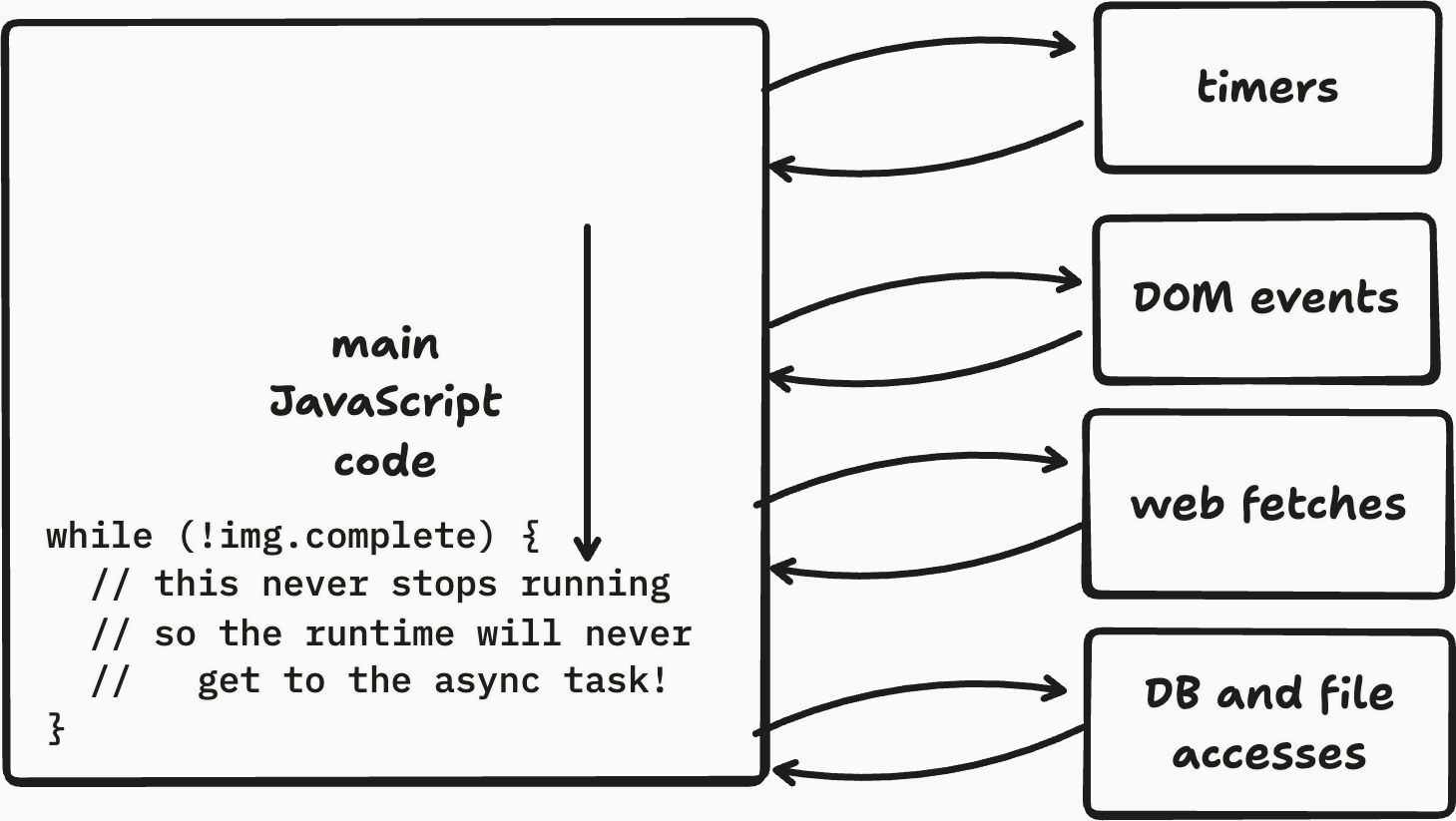

Polling


			  let img=document.createElement('img');

			  //setting src triggers load
			  img.src='https://pictures.com/mine.jpg'
			  while (!img.complete) {
			  // twiddle my thumbs
			  }

			  init();

Drawbacks

While waiting, you're doing nothing
Except wasting energy on empty processing
Maybe you could be doing something else meanwhile...

Polling

Sometimes Necessary

“uncooperative” monitoring
e.g., keep track of whether a page on another web site has changed
it won't tell you, so you have to keep asking

Drawbacks

While waiting, you're doing nothing
Except wasting energy on empty processing
Maybe you could be doing something else meanwhile...

Callbacks

Want to do something when X finishes
Arrange for X to tell you when it's done
By invoking a callback function you give to X
By passing it as an argument to X
When callback is invoked, result of X can be passed as an argument

Example: SetTimeout


			  <button id=button>Click me</button>

Specifies something that should happen later
First argument is callback to run later
Second argument is delay in ms

function missMe() {
  button.textContent="did you miss me?"
 }
button.addEventListener("click",
 evt => {
  button.textContent = "hello";
  setTimeout(missMe, 3000);
  }
 );

What's Wrong?


			  <button id=button>Click me</button>

Specifies something that should happen later
First argument is callback to run later
Second argument is delay in ms

Callback invoked before invoking setTimeout
shouldn't be evaluating it here

function missMe() {
  button.textContent="did you miss me?"
 }
button.addEventListener("click",
 evt => {
  button.textContent = "hello";
  setTimeout(missMe(), 3000);
  }
 );

Example: SetInterval


			  <button id=button>Click me</button>

Specifies something that should happen periodically
First argument is callback to run later
Second argument is delay in ms


let i=0;
let tick =
  () => {button.textContent=++i};
button.addEventListener("click",
  evt => {
	  setInterval(tick, 500);
  }
);

Events

Callbacks are too freeform
- How are the callbacks requested?
- What arguments are passed back to them
Events standardize callbacks using the observer design pattern
- Name the event
- Request callback with AddEventListener
- Pass event object to deliver info to callback
Also generalize
- Can RemoveEventListener in standard way
- No standard way to do that with a plain old callback argument
- Need special cases like clearTimeout, clearInterval

Example

We want to

load an image into an image element
then activate some UI functionality using init().

Load Event Listener


			  let img=document.createElement('img');

			  img.addEventListener('load',init);
			  img.src='https://pictures.com/mine.jpg'

			  doOtherStuff(); //runs during img load

load event is triggered when item finishes loading
event listener is a callback
system invokes callback when event occurs

Drawback: code does not execute in order you see
many opportunities to get confused

What's Wrong?


			  let img=document.createElement('img');

			  img.src='https://pictures.com/mine.jpg'
			  img.addEventListener('load',init);

			  doOtherStuff(); //runs during img load

Race Conditions

Triggered load before adding listener
- may finish before listening starts
- won't ever hear event
Common problem in async programming
- Things happen in an unexpected order
Very hard to debug
- When rerun, different order happens

More Events?


			  let img=document.createElement('img');
			  let img2=document.createElement('img');
			  let img3=document.createElement('img');

			  img.addEventListener('load',init);
			  img2.addEventListener('load',init);
			  img3.addEventListener('load',init);

			  img1.src=img2.src
			      =img3.src='https://pictures.com/mine.jpg'

			  doOtherStuff();

What's wrong?

init after each event
How can I init after all events?

More Events?


			  img.addEventListener('load',event => {
			    img2.addEventListener('load', event => {
			      img3.addEventListener('load',init);
			      img3.src="http://pictures.com/mine.jpg";
			      }
			    img2.src="http://pictures.com/mine.jpg";
			    }
			  img1.src='http://pictures.com/mine.jpg';

			  doOtherStuff();

Drawbacks?

Code is not executed in order of code lines
Have to think hard about where to put addEventListener to catch events
- arbitrarily deep block nesting
- visit Callback Hell
- bugs are common in complex code structures
2d load starts after first completes, and 3d after 2d
- only one load at a time
- takes 3 times as long as doing all at the same time

Async/Await (v1)

Async/Await

Usage:
- async specifies that a function is asynchronous
- await tells execution to pause, await result of async function
- using await makes your code asynchronous
- so only permitted in a function declared async
Common use case: fetching web content
- fetch gets response from a URL
- json() parses json out of a response


				async function work() {
				  let response = await fetch("countries.json");
				  let data = await response.json();
				  for (let country of data.country) {
				    var div = document.createElement("div");
				    div.innerHTML =
				      `${country.code} ${country.name}`;
				    document.body.appendChild(div);
				  }
				}
				work();

Promises

Goal

Define code syntax that looks how we think
fetch img1 then fetch img2 then fetch img3 then init
Represent order of actions and intents to wait

Problem: can't pass code as an argument
Solution: wrap in a callback function
Pass in result of previous step

Idea


			  loadImage(url1)
			  .then({img1=result})
			  .then(loadImage(url2)
			  .then({img2=result})
			  .then(loadImage(url3)
			  .then({img3=result})
			  .then(init);

Promise

Goal

Define code syntax that looks how we think
fetch img1 then fetch img2 then fetch img3 then init
Represent order of actions and intents to wait

Problem: can't pass code as an argument
Solution: wrap in a callback function
Pass in result of previous step

Example


			  loadImage(url1) //returns a promise
			  .then(result => img1=result)
			  .then(() => loadImage(url2))
			  .then(result => img2=result)
			  .then(() => loadImage(url3)
			  .then(result => img3=result)
			  .then(init);	//no arrow;
			  //init is a function

Parallel Promises

Goal

Define code syntax that looks how we think
simultaneously fetch img1, img2, img3 then init
Represent order of actions with implicit waits

Example


			  Promise.all([
			    loadImage(url1)
			    loadImage(url2)
			    loadImage(url3)])
			  .then([u1,u2,u3] => {
			    //note destructuring bind
			    img1=u1;
			    img2=u2;
			    img3=u3;
			  })
			  .then(init);

Using Promises

Promise

Object representing function that will eventually happen (once)
When work completes, promise fulfilled with a value
then() method to specify what to do when promise is fulfilled
- specified in callback argument to then()
chainable: result of first callback can be passed to a second one, and so on

Passing Results

Promise is “thenable”
then(f) says f is a callback to invoke when promise is fulfilled
- f receives value of fulfilled promise
- add any number of callbacks any time
No race condition:
- Callback provided before fulfillment is invoked upon fulfillment
- Callback provided after fulfillment is invoked immediately


			  p = delayed("hi",1000);
			  // promise resolves to "hi"
			  // after 1000ms

			  p.then(res => console.log(res));
			  // console outputs 1000ms later
			  ...lots of code
			  p.then(res => console.log("bye"));
			  // if p already fulfilled,
			  // callback executes immediately

Chaining


			wait(1000)	//promise fulfilled after 1000ms
			.then(() => console.log(1))
			.then(() => console.log(2))
			.then(() => console.log(3))

What gets output?

delay, 1,2,3
delay, 3,2,1
2, delay, 1, 3
3, 2, 1, delay

Chaining


			wait(1000)	//promise fulfilled after 1000ms
			.then(() => console.log(1))
			.then(console.log(2))
			.then(() => console.log(3))

What gets output?

delay, 1,2,3
delay, 3,2,1
2, delay, 1, 3
3, 2, 1, delay

Chaining Results

then() callback can return a value (or a promise of one)
passed to the next then() callback in chain when available
more precisely, then() returns a new promise p providing that value
so next then() is invoked on p
p.then() passes on the value of p


			  //traditional evaluation style
			  y = f(g(h(x)));

			  //promise-based
			  Promise.resolve(x)
			  // promise with fulfilled value x
			  .then(h) //h receives x
			  .then(g) //g receives h(x)
			  .then(f) //f receives g(h(x))
			  .then(res => y=res);

Chaining Results

.then() always returns a promise
- If callback returns a promise, then() returns that
- If callback returns a non-promise, then() wraps it in a (already fulfilled) promise
- If callback returns nothing, then() returns a promise wrapping undefined
next then() in chain invoked on new promise
chaining means deeply nested asynchronous code blocks are often unnecessary and signs of poor/buggy coding

Puzzle

sayOne() and sayTwo() return promises
- To eventually say one or two
How do these behaviors differ?
- What gets executed when?
- What values get passed where?


			  sayOne().then(sayTwo);

			  sayOne().then(sayTwo());

			  sayOne().then(function () {
			    sayTwo;
			  });

			  sayOne().then(function () {
			    sayTwo();
			  });

fetch() allows us to send an HTTP request and fetch a remote resource.
To be able to fetch a resource via JavaScript it must be CORS-enabled.
fetch() returns a Promise that resolves with the response.
Activity: Change this to display a flag instead of the country code! There are flag images in img/flags in PNG format, with the country code as their filename.

Parallel Promises

Promise.all() tracks multiple promises running in parallel
Returns one promise
- resolved when all its subpromises are
- value is array of individual promises' values
- rejects if any of its individuals do
Much clearer about intent than nested event callbacks
- so much easier to debug


			  let p1=fetch(url1);
			  let p2=fetch(url2);
			  let p3=fetch(url3);
			  Promise.all([p1,p2,p3])
			  .then([c1,c2,c3] =>
			  {//process all 3 pieces},
			  err => {handle the error})

Error Handling

Sometimes, an asynchronous computation wants to report failure or errors
- Could just pass the error to then() callback
- But the pattern is so common we design for it
Promise can be rejected instead of fulfilled
then() can take a second callback
- invoked when promise rejected
- receives value of rejected promise---usually error message
- like first callback, can return a value or promise
whichever callback is invoked, returns promise to invokes next then()


			  fetch(url)
			  //returns a promise to provide
			  //   content found at that url
			  .then(content => {
			    //executes if fetch is fulfilled
			    console.log("received" + content);
			    return 0},
			  error => {
			    //executes if fetch is rejected
			    console.log("error: " + error)
			    return -1}
			  })
			  .then(res => console.log(res))
			  //logs 0 if fetch succeeded,
			  //     1 if it failed

Summary

Promises hold possibly-unfinished asynchronous work
.then(f,r) callbacks for when promise resolves
- f() invoked if promise fulfilled
- r() invoked if promise rejected
Whichever callback runs will provide a promise for chaining
- If you return a non-promise, it gets wrapped into a promise
- If you provide nothing, promise wraps undefined
Promise.all can “merge” multiple promises into one

Some Other Methods

p.catch(c): callback c() invoked if promise p is rejected; fulfilled p passed on without change
- Note: like then(), catch() returns a new promise that can fulfill or reject
- p.catch(foo) same as p.then((x)=>x, foo)
p.finally(c): callback c() is invoked when promise p is fulfilled or rejected
Promise.race([a,b,c,...]): returns a promise that fulfills as soon as any of a,b,c... do
Promise.resolve(x): returns a promise that is already resoled to x
- useful for sending a specific value to code that expects a promise as input
Promise.reject(): returns a promise that is already rejected

Constructing Promises

promise needs to know when it is fulfilled or rejected
- and what fulfilled value is
How does (your) code communicate with (other, promise) code?
- With function or method calls
so promise gives you two callbacks
- fulfiller(value) to call when promise should fulfill
- rejector(value) to call when promise should rejects
How does promise communicate these functions to you?
- you give the constructor a callback
- your callback begins the promised work
- and prepares to invoke fulfiller or rejector when done


			  function prepareToResolve(fulfiller, rejector) {
			      function myCallback(result) {
			          //invoked when async work completes
			          if (isGood(result)) {
			              fulfiller(result)
			              } else {
			              rejector("error computing result");
			          }
			      }
			      asynchronousFunction(myCallback);
			  }
			  myPromise = new Promise(prepareToResolve);

Example

Common use of Promise constructor is to wrap callback-based APIs
Make them simpler to use


			  announce = () => console.log("10 seconds passed");
			  setTimeout(announce, 10*1000); //old way

			  function wait (ms) { //promise constructor
			      return new Promise(fulfiller =>
			          setTimeout(fulfiller, ms));
			      //no failures to handle, so ignore rejector
			  }

			  wait(10*1000)
			  .then(announce).catch(failureCallback);

Async and Await

Async/Await

Promises are a powerful construct to simplify asynchronous programming
They are provided as objects and methods
No language (syntax) change required
What if you could change the syntax. Could we make async programming even easier?

async declares an asynchronous function
- Any async function returns a Promise that will be resolved when the function finishes and returns its “actual” value
- without hassle of Promise constructor
async function can await any promise
- await appears synchronous, but it makes that async function pause and wait for the promise to resolve
- when the promise resolves, execution continues from the pause point


async function doMyWork() {
  console.log('beginning')
  let response =
    await fetch("countries.json");
  let data = await response.json()
  console.log(data);
  for (let i=1; i<=5; i++) {
    let result =
	  await delayed('answer',5000);
    console.log(i + result);
    }
  return data;
  }

Async/Await is Syntactic Sugar for Promises

Async


async function f () {
  x();
  a = await(y());
  return z();
  }

Promise


function f () {
  x();
  p = y()
  .then((res) => {a = res;})
  .then(z)
  return p
  }

Async Always Returns a Promise

Assumes you will be invoking await
Which means your code will pause
Which means we can't count on you finishing any particular time
So we need to keep going with other stuff

Compare/Contrast

Polling
- Bad idea; much wasted effort
- Sometimes necessary, to interact with unfriendly systems
Events
- Powerful, essential
- Really natural for unplanned/unexpected, e.g. user input
- But don't standardize pattern of waiting for a series of dependent tasks to complete

Promises
- More specific model of dependent chains of tasks you initiate that will complete later
- Powerful, flexibly programmable
- Flexibility can make them confusing
Async/Await
- Creates illusion of sequential programming
- Simplest mental model
- Need language support
- Less flexible than promises
- but often sufficient

History

Sequential Programming

Asynchronous Programming

Two-edged Sword

Benefits

Costs

Example: Script Loading

Example: Script Loading

More General Solutions

Example

Polling

Drawbacks

Polling

Sometimes Necessary

Drawbacks

Callbacks

Example: SetTimeout

What's Wrong?

Example: SetInterval

Events

Example

Load Event Listener

What's Wrong?

Race Conditions

More Events?

What's wrong?

More Events?

Drawbacks?

Async/Await

Promises

Goal

Idea

Promise

Goal

Example

Parallel Promises

Goal

Example

Promise

Passing Results

Chaining

Chaining

Chaining Results

Chaining Results

Puzzle

Parallel Promises

Error Handling

Summary

Some Other Methods

Constructing Promises

Example

Async/Await

Async/Await is Syntactic Sugar for Promises

Async

Promise

Async Always Returns a Promise

Compare/Contrast
